Nano Interactive Blackboard Intelligent Electronic Black Board 400nits

Basic Information
Place of Origin: China
Brand Name: Astouch
Certification: CE FCC RoHS EAC CCC BIS CB ISO9001
Model Number: A86-IWB05
Minimum Order Quantity: 1 piece
Price: USD 2200per unit
Packaging Details: 1 piece into 1 master carton
Delivery Time: 5-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 pcs per Month
Detail Information
Name: Electronic Black Board Panel Size: 86 Inch (16:9)
Max. Brightness: 400cd/m² Resolution: 4K: 3840*2160
Panel Life: 50000 Hours Responsive Time: 8ms
Viewing Angle: H178/V178 CPU: AmlogicT982 Quad-core A55*4, 1.9GHz
Android Version: Android 11 RAM And ROM: 4+32G, 8+128G Optional
High Light:

Nano Interactive Blackboard


Interactive Blackboard Intelligent


Electronic Black Board 400nits

Product Description

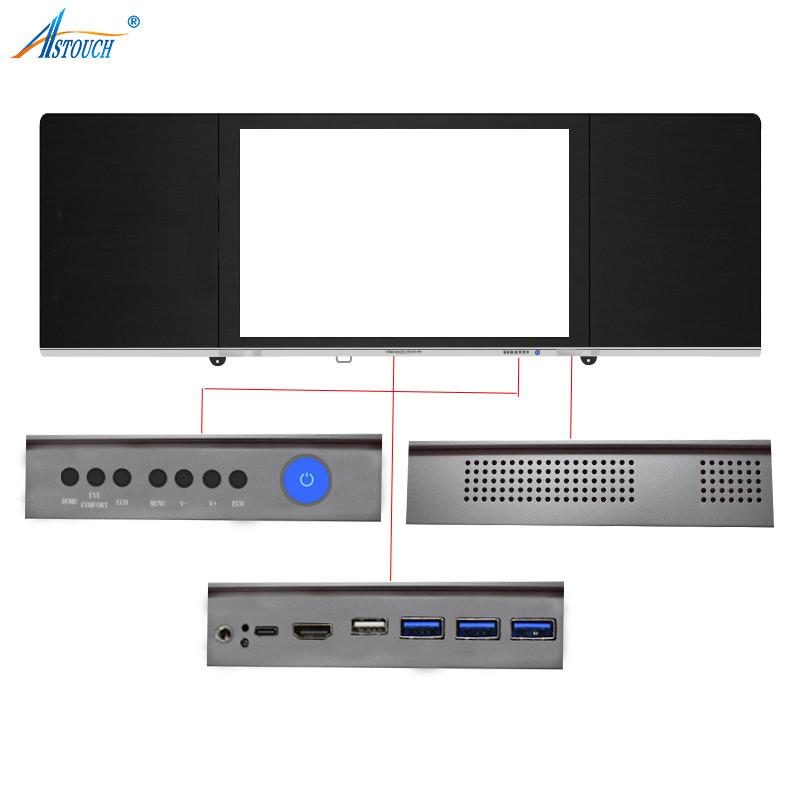

Dual System 86 Inch Interactive Touch Intelligent Nano Blackboard



Intelligent Nano Blackboard is a modern and technologically advanced tool designed specifically for school education. It is a digital board that replaces traditional chalkboards and whiteboards. It is a high-resolution LED screen that can be mounted on the wall in a classroom or academic setting.


The Intelligent Nano Blackboard comes with several features that make teaching and learning easier and more engaging:


First and foremost, the blackboard has touch screen technology, which allows teachers and students to interact with the board using their fingers or a digital pen. This feature makes it possible to write, draw, and annotate directly on the board, making it ideal for brainstorming, problem-solving, and idea sharing.


The Intelligent Nano Blackboard also comes with an advanced software system that enables teachers to access and share teaching materials directly from their computers, tablets or smartphones. The software system also comes with pre-installed teaching aids like diagrams, graphs, and images that can be used to explain difficult concepts in a simple and visual way.


Another key feature of the Intelligent Nano Blackboard is the ability to record and save lessons. Teachers can record their lessons and store them for future reference or share them with absent students or those who did not understand the lesson.


Overall, the Intelligent Nano Blackboard is an innovative educational tool that is ideal for modern classrooms. With its advanced features, the blackboard can enhance the teaching and learning experience of students and teachers alike.



Product Parameters in details of Interactive Touch Intelligent Nano Blackboard:


Model Name

Intelligent Nano Blackboard



86inch (75inch, 98inch, optional)


Screen Resolution

4K: 3840*2160 / 60Hz


Max Brightness



Default System

Android 11



Amlogic 982, Quad core A55*4, 1.9GHz









WiFi: 2.4G + BT / Hotspot: 2.4G + 5G


Screen sharing App

4 screens sharing (9-screen sharing optional)


Default APP

Whiteboard / Google Play Store / Google Chrome / etc


OPS support

4K: 3840*2160 / 30Hz


OPS' Max Input Supported

55/65 inch,110W≤POWER CONSUMPTION;
75/86/100 inch,150W≤POWER CONSUMPTION


Touch Points

Multitouch: Android 20 Ponits


AG Glass

Anti-glare 4mm


Viewing angle



Loud Speaker

8Ω 15W *2


Front I/O

HDMI in *1, Touch USB *1, Type-C *1, USB * 3, Power button *1


Rear I/O


HDMI in *2, AV IN *1, AV OUT *1,

SPDIF out *1, Earphone * 1, RJ45 *1,

USB2.0 *1, USB3.0 *1, HDMI out *1,

RS232 UART *1, Touch USB *1,

[ VGA *1 + YPBPR *1 + VGA Audio IN *1 optional ]


Weight & Size

86kg + 52kg,

interactive blackboard: 225*21*143cm
normal blackboard: 115*25*142cm


Standard Accessories


Interactive board,

normal blackboard *2,

Wall mount bracket,

AC power charger,

Remote control,

2pcs Magnetic pens


OPTIONAL functions


13MP/ 48MP Camera + 8 array Microphone,

Dual 5G,


Wifi 6,




Function & Application

* Support function DMS (one main device to control all devices)

* Mainly for school education
