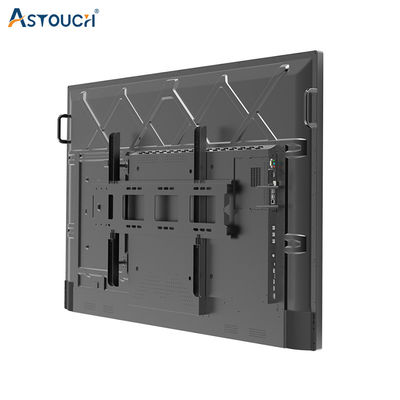

4K Smart Board Interactive Whiteboard 75 Inch IR Whiteboard Teaching

Basic Information
Place of Origin: China
Brand Name: Astouch
Certification: CE FCC RoHS EAC CCC BIS CB ISO9001
Model Number: A75-IWB06
Minimum Order Quantity: 1 piece
Price: USD 750 per unit
Packaging Details: 1 piece into 1 master carton, 6 cartons per pallet
Delivery Time: 5-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 pcs per Month
Detail Information
Panel Size: 75 Inch (16:9) Max. Brightness: 350cd/m²
Resolution: 4K: 3840*2160 Android Version: Android 11, Android 12 Optional
RAM And ROM: 4+32G, 8+128G Optional Operation System: Windows Optional
High Light:

4K Smart Board Interactive Whiteboard


Smart Board Interactive Whiteboard


75 Inch IR Whiteboard

Product Description

75 Inch Teaching Smart Board Interactive Whiteboard with Camera Microphone



* Quad core Android 11 & Octa core Android 12 optional

* 4G+32G, 8G+64G, 8G+128G optional
* IR touch with 20 & 40 points optional
* Support function DMS (one main device to control all devices)

* Mainly for school eductaion & commercial conferences


Interactive flat panel is a type of advanced electronic display that enables users to interact with the content on the screen.


Interactive flat panels are commonly used in various settings where visual presentations or collaborations are needed, such as in classrooms, boardrooms, meeting rooms, training centers, and conference centers. They are becoming increasingly popular in education and corporate environments as they offer a more interactive and engaging way of presenting information, collaborating, and sharing ideas.

In classrooms, interactive flat panels can be used as a tool for teaching and learning, allowing teachers to create interactive lessons, annotate on digital content, and engage students in a more dynamic way. In corporate settings, they are often used for video conferencing, brainstorming sessions, and presentations.

Interactive flat panels can also be found in public spaces such as museums, exhibition centers, and libraries, where they are used to display information in an interactive and visually compelling way to engage visitors. Overall, interactive flat panels offer a versatile and effective tool for communication, collaboration, and information sharing in a variety of settings.




Product Parameters in details of Interactive Touch Panel:


Model Name

Smart Interactive Touch Panel



75inch (55inch, 65inch, 85inch, 86inch, 98inch, 110inch optional)


Screen Resolution

4K: 3840*2160 / 60Hz


Max Brightness



Default System

Android 11



1) Amlogic 982, Quad core A55*4, 1.9GHz

2) Octa core optional







(8G+64G, 8G+128G optional)



WiFi: 2.4G + BT / Hotspot: 2.4G + 5G

(Dual 5G / WIfi 6 optional)


Screen sharing App

4 screens sharing

(9-screen sharing optional)


Default APP

Whiteboard / Google Play Store / Google Chrome / etc


OPS support

4K: 3840*2160 / 30Hz (/ 60Hz)


OPS' Max Input Supported

55/65 inch,110W≤POWER CONSUMPTION;
75/86/100 inch,150W≤POWER CONSUMPTION


IR Touch Points

Multitouch: Android 20 Ponits

【Optional Windows 40 point】


AG Glass

Anti-glare 4mm


Loud Speaker

8Ω 15W *2


Front I/O

HDMI in *1, Touch USB *1, Type-C *1, USB * 3, Power button *1


Rear I/O


HDMI in *2, AV IN *1, AV OUT *1,

SPDIF out *1, Earphone * 1, RJ45 *1,

USB2.0 *1, USB3.0 *1, HDMI out *1,

RS232 UART *1, Touch USB *1,

[ VGA *1 + YPBPR *1 + VGA Audio IN *1, etc optional ]


Weight & Size

75kg, 183*18*119cm


Standard Accessories


Interactive flat panel,

Wall mount bracket,

AC power charger,

Remote control,

2pcs Magnetic pens


OPTIONAL functions


13MP/ 48MP Camera + 8 array Microphone,

Dual 5G,


Wifi 6,





4K Smart Board Interactive Whiteboard 75 Inch IR Whiteboard Teaching 0

4K Smart Board Interactive Whiteboard 75 Inch IR Whiteboard Teaching 1

4K Smart Board Interactive Whiteboard 75 Inch IR Whiteboard Teaching 24K Smart Board Interactive Whiteboard 75 Inch IR Whiteboard Teaching 3

4K Smart Board Interactive Whiteboard 75 Inch IR Whiteboard Teaching 4
