| Place of Origin: | China |
|---|---|
| Brand Name: | Astouch |
| Certification: | CE FCC RoHS EAC CCC BIS CB ISO9001 |
| Model Number: | A75-IWB06 |
| Minimum Order Quantity: | 1 piece |
| Price: | USD 750 per unit |
| Packaging Details: | 1 piece into 1 master carton, 6 cartons per pallet |
| Delivery Time: | 5-10 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pcs per Month |
| Panel Size: | 75 Inch (16:9) | Max. Brightness: | 350cd/m² |
|---|---|---|---|
| Resolution: | 4K: 3840*2160 | Android Version: | Android 11, Android 12 Optional |
| High Light: | Interactive Board Panel 350nits,Interactive Board Panel 60hz,Smart Board Panel 60hz |
||

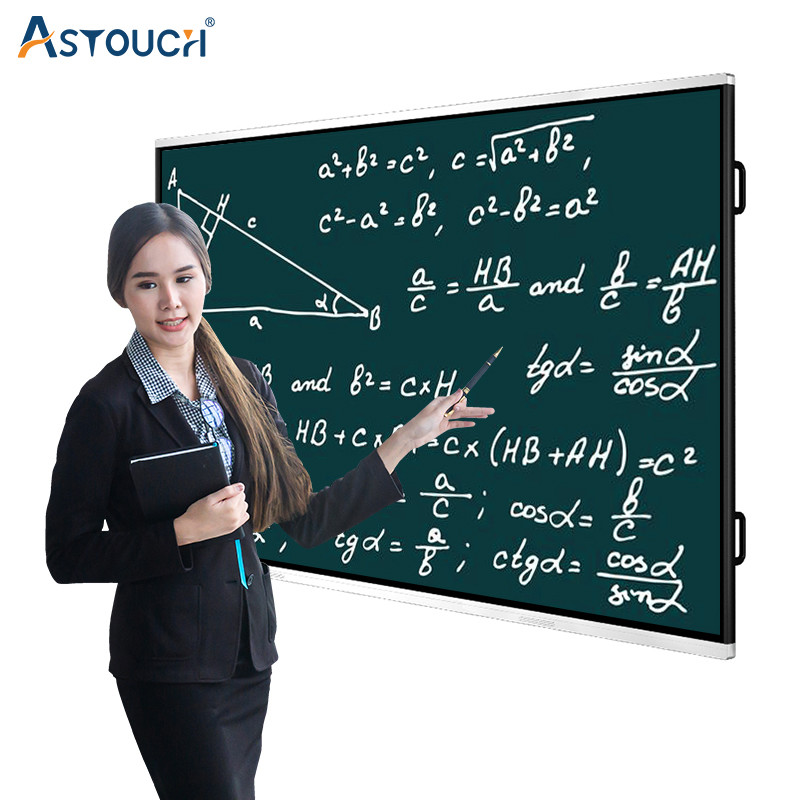

The interactive touch panel technology allows for multiple users to interact with the smart board at the same time, making it ideal for collaborative work or group presentations. This technology also enables the use of gesture recognition or other interactive features.
Product Parameters in details of Interactive Touch Panel:
| Model Name |
Smart Interactive Touch Panel
|
| Size |
75inch (55inch, 65inch, 85inch, 86inch, 98inch, 110inch optional)
|
| Screen Resolution |
4K: 3840*2160 / 60Hz
|
| Max Brightness |
350nits
|
| Default System |
Android 11
|
| CPU |
1) Amlogic 982, Quad core A55*4, 1.9GHz 2) Octa core optional
|
| GPU |
Mali-G52*4
|
| RAM+ROM |
4G+32G, (8G+64G, 8G+128G optional)
|
| WIRELESS |
WiFi: 2.4G + BT / Hotspot: 2.4G + 5G (Dual 5G / WIfi 6 optional)
|
| Screen sharing App |
4 screens sharing (9-screen sharing optional)
|
| Default APP |
Whiteboard / Google Play Store / Google Chrome / etc
|
| OPS support |
4K: 3840*2160 / 30Hz (/ 60Hz)
|
| OPS' Max Input Supported |
55/65 inch,110W≤POWER CONSUMPTION;
|
| IR Touch Points |
Multitouch: Android 20 Ponits 【Optional Windows 40 point】
|
| AG Glass |
Anti-glare 4mm
|
| Loud Speaker |
8Ω 15W *2
|
| Front I/O |
HDMI in *1, Touch USB *1, Type-C *1, USB * 3, Power button *1
|
| Rear I/O |
HDMI in *2, AV IN *1, AV OUT *1, SPDIF out *1, Earphone * 1, RJ45 *1, USB2.0 *1, USB3.0 *1, HDMI out *1, RS232 UART *1, Touch USB *1, [ VGA *1 + YPBPR *1 + VGA Audio IN *1, etc optional ]
|
| Weight & Size |
75kg, 183*18*119cm
|
| Standard Accessories |
Interactive flat panel, Wall mount bracket, AC power charger, Remote control, 2pcs Magnetic pens
|
| OPTIONAL functions |
13MP/ 48MP Camera + 8 array Microphone, Dual 5G, HDMI OUT, Wifi 6, Type-C, etc
|
