| Place of Origin: | China |
|---|---|
| Brand Name: | Astouch |
| Certification: | CE FCC RoHS EAC CCC BIS CB ISO9001 |
| Model Number: | A98-IWB06 |
| Minimum Order Quantity: | 1 piece |
| Packaging Details: | 1 piece into 1 master carton, 6 cartons per pallet |
| Delivery Time: | 5-10 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pcs per Month |
| Resolution: | 3840 X 2160 | Brightness: | 350 Nits |
|---|---|---|---|
| Operation System: | Android Or Windows Optional | Color: | Black, Other Colors Optional |
| View Angel: | 178/178 | Default APP: | Whiteboard / Google Play Store / Google Chrome / Etc |
| High Light: | RoHS Smart Interactive Panel,Smart Interactive Panel IFP,IFP Flat Whiteboard |
||

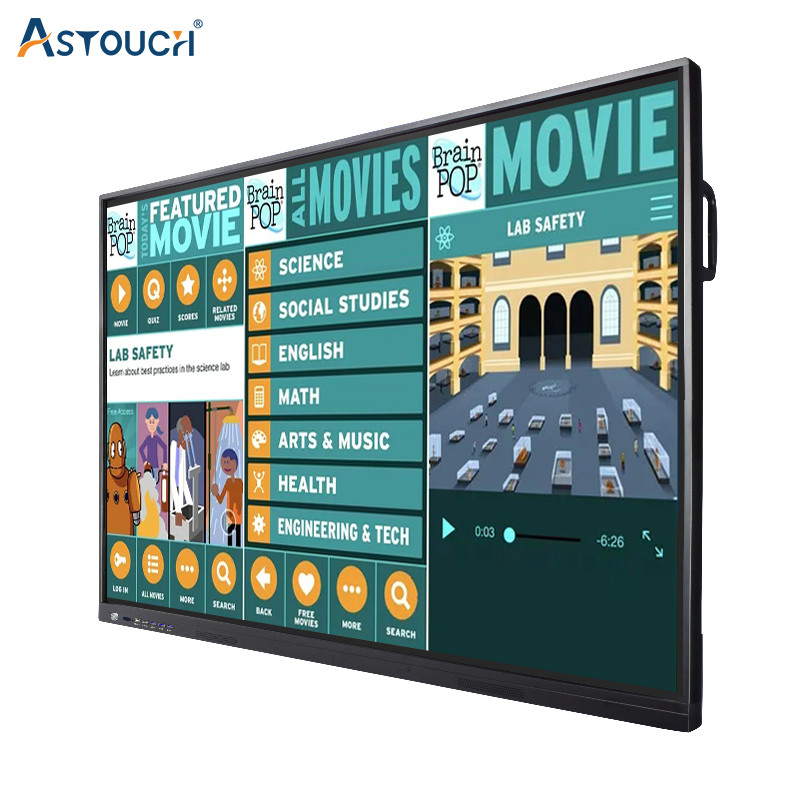

A 98 inch Android 11 new IFP (Interactive Flat Panel) smart whiteboard is a large display panel with built-in intelligence and interactive features that allow for seamless collaboration and communication.
The Android 11 operating system provides a familiar and user-friendly interface, enabling users to easily navigate through the features and functions of the panel. The smart whiteboard feature allows users to write, draw, and annotate on the screen using a stylus or their fingers, making it perfect for presentations, brainstorming sessions, and educational purposes.
Product Parameters in details of Interactive Touch Panel:
| Model Name |
Smart Interactive Touch Panel
|
| Size86 |
98 inch (55inch, 65inch, 75inch, 86inch, 110inch optional)
|
| Screen Resolution |
4K: 3840*2160 / 60Hz
|
| Max Brightness |
350nits
|
| Default System |
Android 11
|
| CPU |
1) Amlogic 982, Quad core A55*4, 1.9GHz 2) Octa core optional
|
| GPU |
Mali-G52*4
|
| RAM+ROM |
4G+32G, (8G+64G, 8G+128G optional)
|
| WIRELESS |
WiFi: 2.4G + BT / Hotspot: 2.4G + 5G (Dual 5G / WIfi 6 optional)
|
| Screen sharing App |
4 screens sharing (9-screen sharing optional)
|
| Default APP |
Whiteboard / Google Play Store / Google Chrome / etc
|
| OPS support |
4K: 3840*2160 / 30Hz (/ 60Hz)
|
| OPS' Max Input Supported |
55/65 inch,110W≤POWER CONSUMPTION;
|
| IR Touch Points |
Multitouch: Android 20 Ponits 【Optional Windows 40 point】
|
| AG Glass |
Anti-glare 4mm
|
| Loud Speaker |
8Ω 15W *2
|
| Front I/O |
HDMI in *1, Touch USB *1, Type-C *1, USB * 3, Power button *1
|
| Rear I/O |
HDMI in *2, AV IN *1, AV OUT *1, SPDIF out *1, Earphone * 1, RJ45 *1, USB2.0 *1, USB3.0 *1, HDMI out *1, RS232 UART *1, Touch USB *1, [ VGA *1 + YPBPR *1 + VGA Audio IN *1, etc optional ]
|
| Weight & Size |
75kg, 183*18*119cm
|
| Standard Accessories |
Interactive flat panel, Wall mount bracket, AC power charger, Remote control, 2pcs Magnetic pens
|
| OPTIONAL functions |
13MP/ 48MP Camera + 8 array Microphone, Dual 5G, HDMI OUT, Wifi 6, Type-C, etc
|
